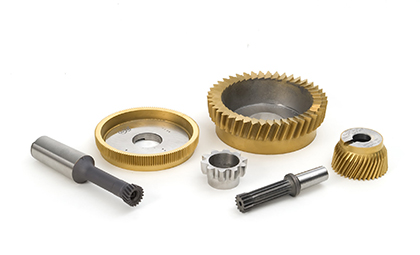

It is play a very crucial role in manufacturing precision gears. Gear shaper cutters suppliers India utilizes them to make precise gear teeth in different industrial parts. The movement of the cut is straight and repetitive at a high frequency to achieve efficient material removal. It is accuracy that is determined by how sharp the cutter is and how straight it is aligned. The cutters are all unique to particular gears in size and tooth form. The shape of the cutter enables the shaping of internal and external gears. The method works especially well with complex or fragile gear material.
Designing
The gear shaper cutter should be designed accurately before the production process. Based on this data, a computer-aided drawing of the cutter is made. The blueprint ensures that the last cutter used would produce the desired form of tooth and tooth spacing. This concept legalizes mistakes and creates flawless communication. Adequate design extends the life of the equipment. It also ensures high efficiency and accuracy in the gear shaping exercises.
Material selection
They use high-speed steel or carbide in their cutters. These equipment show excellent wear conflict and hardiness. The raw material that is selected is then checked against any defects. The presence of any impurities may influence the work of the cutter and the quality of the final gears. Once accepted, the material is cut into blanks of the needed size. Blanks are then heat-treated in order to enhance hardness. The normalization of the blank of the heat-treated material is a procedure after heat treatment. This operation decreases inner stresses in the material. It makes the cutter blank ready for the following process, which is machining. The accuracy and tool life are directly impacted by the material selection.
Machining of the cutter
It is the centerpiece in making a working gear shaper cutter. The blank is placed on a fixture and clamped snugly. The use of a series of tools then removes excess material. This makes the cutter have its simple form and size. The cutter teeth are subsequently milled to the desired profile. Here, the precision is vital so that we can have performance during gear cutting. The tooth surfaces are smooth, cut by special grinding machines. At each step, dimensional checks are carried out. This step makes sure that the cutter will produce the right profile of the gears.
Quality inspection and testing
All cutters are put through inspections strictly. The gear shaper cutters manufacturers in India use visual and dimensional tests. The tooth profile is compared with the design. The aspect of surface finish is scrutinized under a microscope in search of faults. The effectiveness of heat treatment is proven with hardness tests. The cutter is also put to the test in regard to concentricity and balance. Testing makes the process reliable and produces the same result. These cutters are even more vital in the role they are playing, as there is an increased demand for precision gears. Intelligent production and inspection methods help to keep the international standards
